You want a J1772 Level 2 charger that matches your breaker, panel capacity, and usage—not hype. Compare amperage (16–50 A), enclosure ratings (NEMA 3R/4X), UL/cUL/ENERGY STAR, Wi‑Fi features (OCPP, load sharing), cable length, plug‑in vs hardwire, and warranty. Some prioritize ruggedness over apps; others push 48–50 A with smart schedules and OTA updates. One option balances 50 A, NEMA 4, and a strong warranty at a lower cost—now the trade‑offs matter.
Key Takeaways
- Top power: ChargePoint Home Flex (up to 50 A/12 kW) and Wallbox/JuiceBox 48 (48 A/11.5 kW) for fastest home charging.
- Rugged outdoor options: Grizzl‑E Classic (NEMA 4, 40 A) and FLO Home X6 (48 A continuous) excel in weather resistance and duty cycle.
- Smart features vary: JuiceBox, Wallbox, Autel, Emporia offer Wi‑Fi apps, scheduling, OTA updates; Blink HQ 200 is simpler, in‑car scheduling only.
- Safety and certifications: Look for UL/CSA listings, 20 mA GFCI, NEMA 3R/4 enclosures; common across ChargePoint, Wallbox, Emporia, Grizzl‑E, FLO.
- Installation: NEC 625 requires 125% sizing; 48–50 A units need 60 A hardwired breakers; 32–40 A models fit 40–50 A circuits.

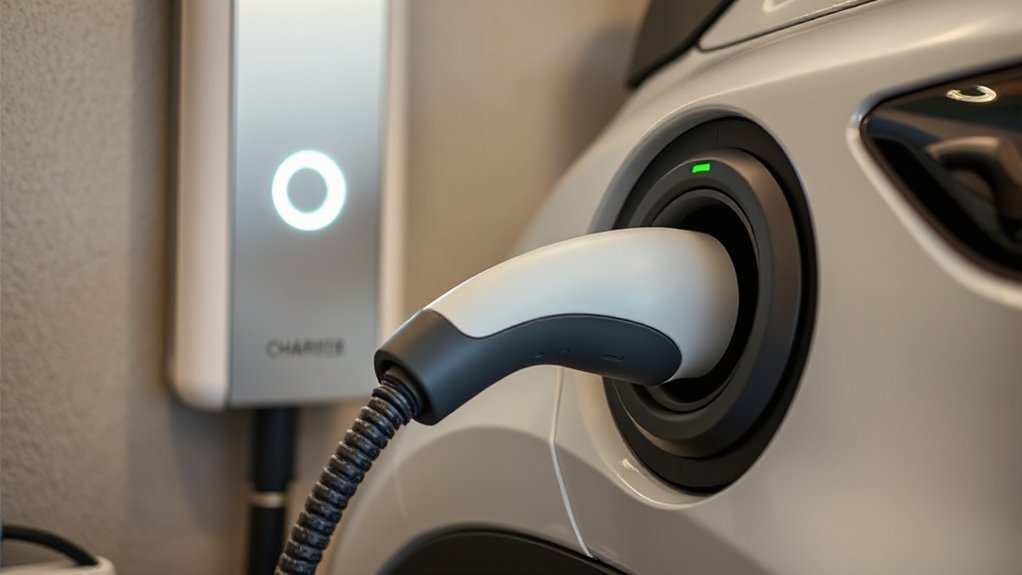

ChargePoint Home Flex (50A)
A UL-listed wallbox with a 23‑ft J1772 cable, the ChargePoint Home Flex is a Level 2 EVSE configurable from 16–50 A to match your circuit and vehicle. You’ll deliver up to 12 kW at 240 V when hardwired and set to 50 A, requiring a 60 A breaker per NEC 625’s 125% continuous-load rule. The unit carries ENERGY STAR certification, NEMA 3R outdoor rating, and 20 mA CCID ground-fault protection. Use the Mobile App over 2.4 GHz Wi‑Fi to set amperage, schedules, and utility rate-based cost tracking. No Subscription Options are required for home use. You can mount indoors or outdoors; the flexible whip simplifies hardwiring. Cable management is sturdy, and the 23‑ft reach meets typical garage layouts. Backed by a three-year limited warranty.

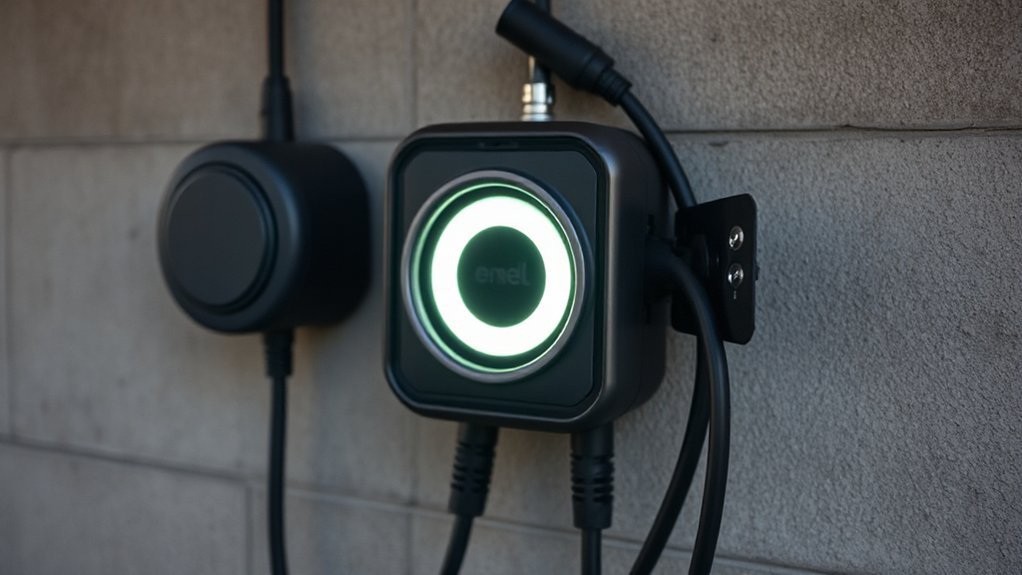

Enel X JuiceBox 48
Workhorse wallbox Enel X JuiceBox 48 delivers up to 11.5 kW on a 240 V circuit via a J1772 connector and 25‑ft cable. You’ll charge up to 48A (hardwired on a 60A breaker), with adjustable current limits in 1A steps for panel constraints. It’s UL 2594/2231 and NEC 625 compliant, ENERGY STAR certified, and uses a NEMA 4X enclosure for outdoor duty. Wi‑Fi plus the mobile app enable scheduling, time‑of‑use optimization, load sharing, and remote firmware updates. You can lock access, view kWh, and receive alerts. The cable management holster is solid, and the unit supports Alexa/Google integrations. If you need utility demand‑response, JuiceBox participates in many programs. Warranty is 3 years; operating range is roughly −30°C to 50°C. Professional installation by electrician recommended.

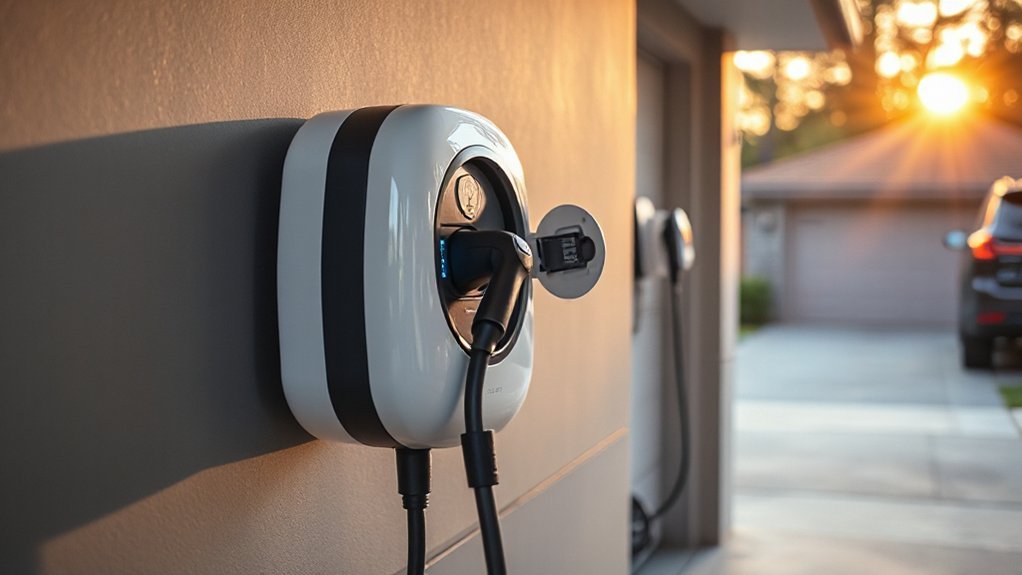

Wallbox Pulsar Plus (48A)
Compact, app‑connected Wallbox Pulsar Plus (48A) delivers up to 11.5 kW on a 240 V circuit through a J1772 connector and 25‑ft cable, with 48A output when hardwired on a 60A breaker (adjustable amp limit via the app). You get UL 2594/2231 compliance, ENERGY STAR certification, and a NEMA Type 4 enclosure for outdoor mounting. Wi‑Fi/Bluetooth enable remote scheduling, charging lock, and adjustable current from 6–48A. Pair multiple units for power sharing on a single circuit to comply with NEC 625 load calculations. Integrated GFCI (20 mA) and ground monitoring enhance safety. The 25‑ft cable stays orderly with included cable management hardware and a compact holster. Use eco mode to schedule off‑peak charging. Three‑year warranty and OTA updates. App shows voltage, current, kWh metrics.

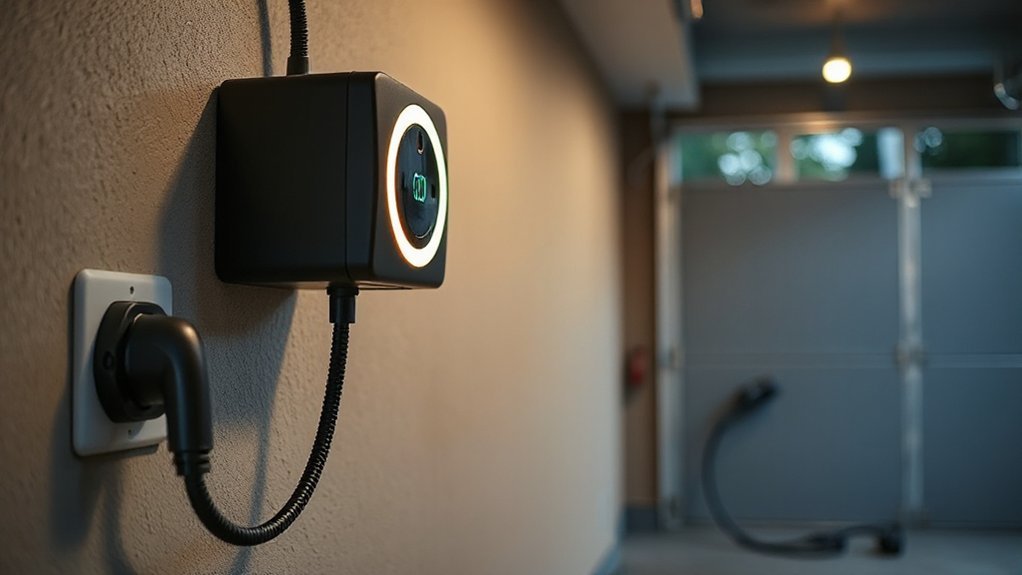

Emporia Level 2 EV Charger (48A)
After the Pulsar Plus, Emporia’s Level 2 EV Charger (48A) matches the 11.5 kW J1772 output on 240 V and adds robust load management via the Emporia app and optional Vue energy monitor. You’ll hardwire to a 60 A breaker for 48 A continuous per NEC’s 80% rule and SAE J1772. App Integration enables schedules, current limits, and multi-charger load sharing. With Energy Monitoring, Vue correlates whole-home load and throttles charging to protect your main. It’s UL/cUL Listed, Energy Star certified, NEMA 4 rated, 24‑ft cable, 2.4 GHz Wi‑Fi, OTA updates, and demand response ready. The app logs kWh, session time, and voltage/current metrics for audits.
| Feature | Detail |
|---|---|
| Output | 48 A, 11.5 kW @ 240 V |
| Compliance | UL/cUL, Energy Star, NEMA 4, SAE J1772 |
Grizzl‑E Classic (40A)
Aluminum housing and a 40 A J1772 handle define the Grizzl‑E Classic, a no‑frills Level 2 EVSE that delivers 9.6 kW at 240 V. You can install it with a NEMA 14‑50 plug or hardwire, set current via DIP switches to 16/24/32/40 A, and trust its NEMA 4 weatherproof design for year‑round outdoor duty. It’s UL/cUL Listed to UL 2594 and UL 2231, includes integral GFCI, a 24‑ft cable, and operates from −22°F to 122°F. Warranty details: 3‑year standard coverage.
1) Adjustability: match breaker capacity and shared circuits without tripping.
2) Durability: thick aluminum enclosure, gasketed seals, and strain‑relieved cable withstand harsh conditions.
3) Value: robust safety, simple controls, and reliable 9.6 kW output without app overhead.
CSA certification noted for Canadian installations too.

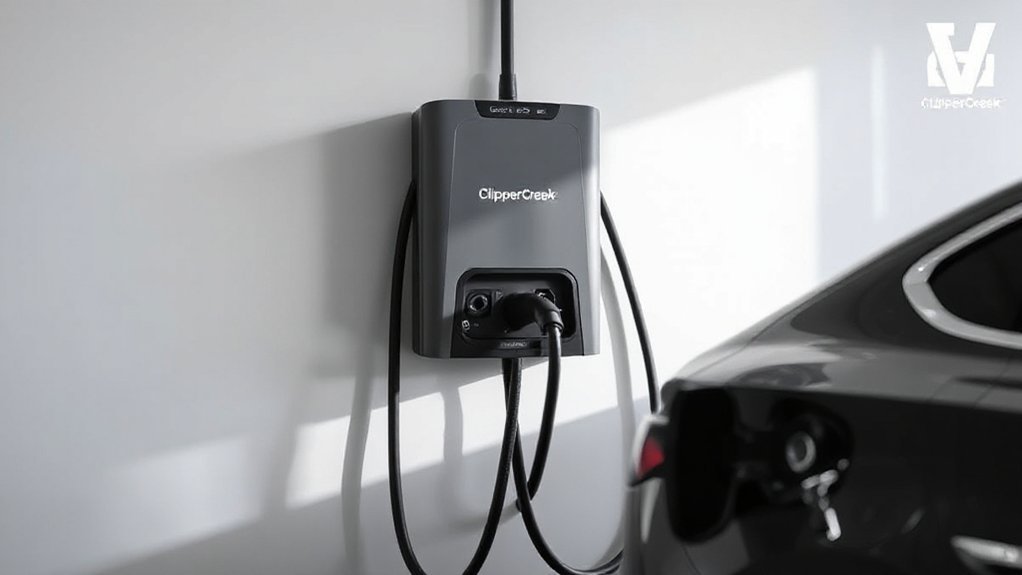

ClipperCreek HCS‑40 (32A)
Stepping down from a 40 A EVSE, the ClipperCreek HCS‑40 delivers 32 A (7.7 kW at 240 V) through a J1772 handle in a fixed‑output, hardwired design that targets code‑compliant installs on a 40 A breaker per NEC 625. You get UL 2594 and UL 2231-1/-2 certification, a NEMA 4X enclosure, and a 25 ft cable rated for -30°C to 50°C duty. It’s simple, reliable, and sized to match many 32 A onboard chargers without derating. Status LEDs provide ground fault and pilot diagnostics. Warranty specifics: a 3‑year manufacturer warranty and robust service support. Cable management is straightforward with the included wall holster and cable cradle, minimizing bend radius stress. Installers will appreciate clear labeling, knockouts, and a terminal block for #8 AWG copper.

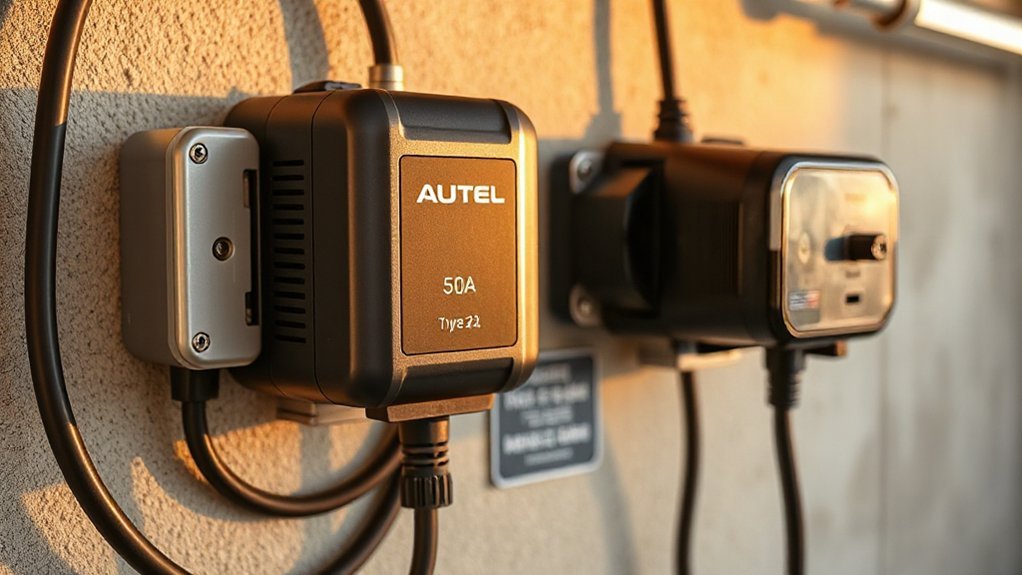

Autel MaxiCharger AC Home (50A)
Boxy and weather‑sealed, the Autel MaxiCharger AC Home is a J1772 Level 2 EVSE rated up to 50 A (≈12 kW at 240 V) with adjustable current. You’ll set amperage in‑app to match a 40–60 A breaker, schedule charging, and lock the connector. It’s UL listed, Energy Star certified, and NEMA 4 outdoor installs. The 25‑ft cable stays flexible in cold weather, and the holster seals J1772 inlet. Connectivity includes Wi‑Fi, Bluetooth, and Ethernet; Firmware updates arrive OTA to maintain SAE J1772 interoperability, safety, and demand‑response.
Weather-sealed, UL-listed 50A J1772 EVSE with app-set amps, 25-ft cold-flex cable, Wi‑Fi/Bluetooth/Ethernet, OTA updates
- Installation: Hardwired is recommended above 40 A per NEC 625; use copper conductors and GFCI protection as required.
- Performance: 1‑phase, 208/240 V, adjustable 6–50 A, with kWh logging.
- Warranty terms: 3‑year limited warranty and support.

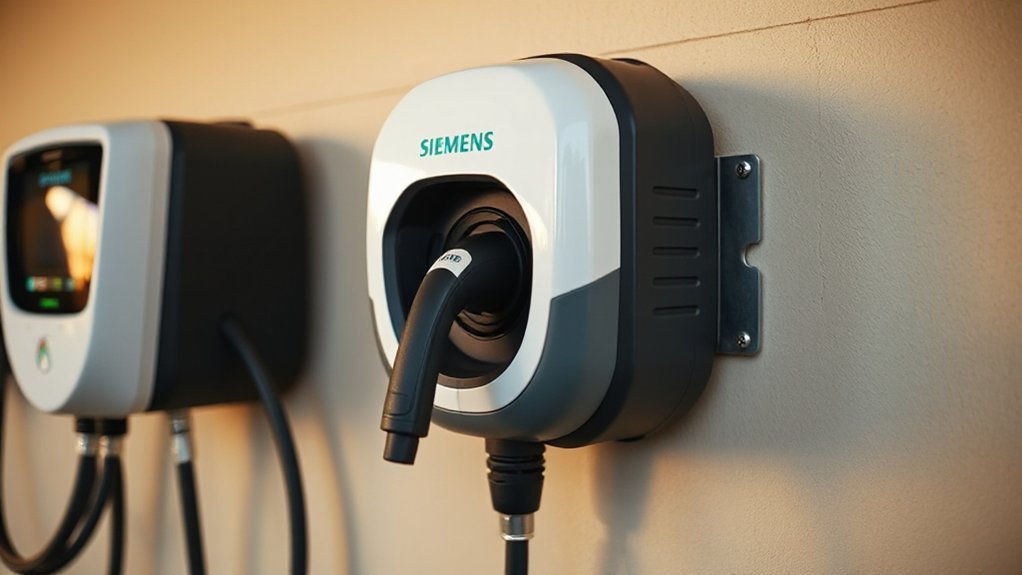

Siemens VersiCharge (40A)
You get up to 40 A at 240 V (9.6 kW) via SAE J1772, aligning with typical Level 2 onboard charger limits for efficient AC charging. You can install it as a plug-in (NEMA 6-50) or hardwire it, then set the current limit (e.g., 16–40 A) to match the circuit and comply with NEC 625 continuous-load rules. You also gain indoor/outdoor flexibility with a NEMA 4 enclosure and versatile mounting for different service locations.
Charging Performance
While rated at 40 A on a 240 V circuit, the Siemens VersiCharge sustains up to 9.6 kW (SAE J1772 AC Level 2), with actual charge speed capped by your vehicle’s onboard charger. You’ll get consistent delivery via 1 kHz PWM pilot signaling advertising 40 A available current. The unit maintains output under thermal management limits to protect components and mitigate battery degradation by avoiding overheated sessions. Expect 8.5–9.4 kW at the plug, varying with cable temperature and OBC efficiency.
- Ramp-up: Negotiates current quickly in seconds; resumes gracefully after brief outages.
- Temperature control: Monitors connector heat and reduces current to sustain safe contact resistance.
- Session data: LEDs indicate state; you can precisely validate current, voltage, and time to estimate kWh delivered.
Installation Flexibility
Because it’s UL 2594/UL 2231 listed with a NEMA 4 enclosure, the VersiCharge 40A installs indoors or outdoors on 208–240 V single-phase service and supports wall or pedestal mounting. You get flexible Mounting Options and templates. Hardwired installation on a 50 A branch circuit meets NEC 625’s 125% continuous-load rule for 40 A output. Adjustable current limits let you derate to 16–40 A to fit existing service or load calculations (NEC 220). Typical conductors are 6 AWG Cu THHN in metallic or nonmetallic conduit; bonding follows NEC 250. For multifamily or commercial sites, pedestal kits simplify line‑up installs and ADA reach ranges. Expect Permit Requirements and inspection; some jurisdictions require load management documentation and GFCI for receptacle-fed EVSE—this unit is hardwired with integral protection.

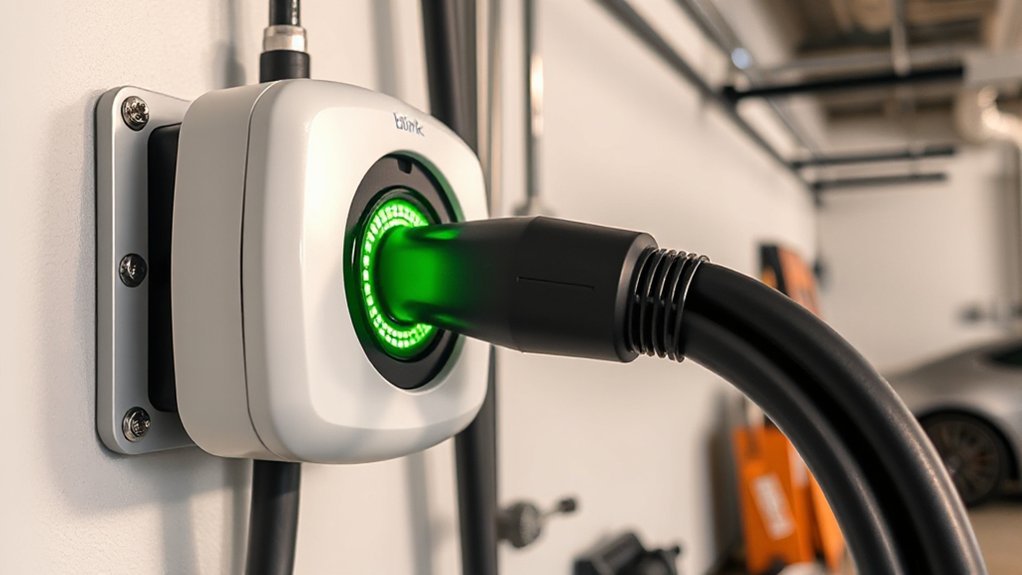

Blink HQ 200 (40A)
The Blink HQ 200 is a 40A, SAE J1772 Level 2 EVSE that delivers up to 9.6 kW at 240 V, suitable for home installation on a 50A branch circuit per NEC 625’s 125% continuous-load rule.
You get a hardwired unit with a 25‑ft J1772 cable, NEMA 3R enclosure, and UL listing. It offers adjustable current from 16–40A for panel limits. Relay life is rated 50,000 cycles; Blink’s durability testing covers −22°F to 122°F and salt‑fog. Aesthetic design stays low-profile and garage-friendly. Standby draw is under 3 W; no OCPP, so schedule in-vehicle.
- ~30–32 mi/hr on efficient EVs (3.1–3.3 mi/kWh) typical.
- Protections: 20–30 mA GFI, overcurrent, overtemp; SAE J1772 proximity/PP.
- Install: 6 AWG Cu, 2‑pole 50A breaker; GFCI if AHJ requires.
FLO Home X6 (50A)
Built-for-weather hardware, FLO Home X6 is a 50A, SAE J1772 Level 2 EVSE that delivers up to 48A continuous (≈11.5 kW at 240 V) when hardwired on a 60A branch circuit per NEC 625’s 125% continuous‑load rule. You get an outdoor‑rated, corrosion‑resistant enclosure, cULus safety listing, and installer‑set current limits for panel coordination. Cable management feels premium: a rigid holster protects the inlet and keeps the thick cable tidy in winter.
| Spec | Value |
|---|---|
| Maximum continuous current | 48 A @ 240 V |
| Enclosure/weather rating | NEMA 4X‑class, outdoor |
| Connector standard | SAE J1772, Type 1 |
It’s Wi‑Fi free by design, so reliability is high and cyber‑surface low. Expect warranty coverage and support. If you need high duty‑cycle home charging, you’ll like its thermal performance and fault monitoring.
Conclusion
You’ve got strong options across power, durability, and smart control. Match EVSE output to your circuit per NEC 625 and the 80% rule—e.g., a 60‑A breaker supports 48‑A charging. That delivers 11.5 kW, roughly 35–44 miles of range per hour (at 330–260 Wh/mi). Favor UL/CSA‑listed units with adjustable amps, NEMA 4 enclosures, and Wi‑Fi for scheduling and load sharing. If you just want rugged value, a 32–40 A no‑frills unit still refills most commutes overnight.
